Removing and Installing Foot Plate

CAUTION: Always operate the mower with the foot plate installed. Operating with the foot plate removed can cause serious injury.

Removing Foot Plate

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2.
   TCAL43832-UN-21MAR13

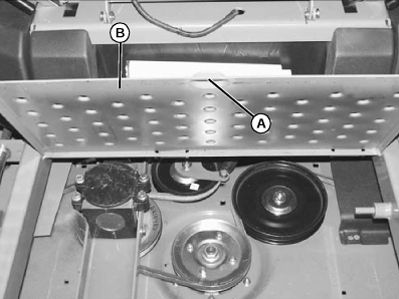

   Pull foot plate (B) up using handle (A).

---




3.
   TCAL43833-UN-21MAR13

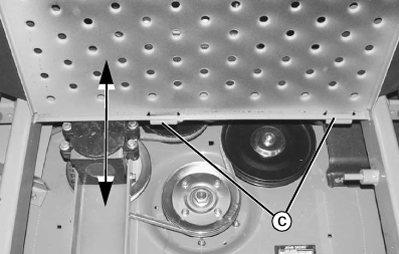

   Lift foot plate in the direction shown to disengage hinge tabs (C) from holes in the frame.

---




4. Remove foot plate.

Installing Foot Plate

1. Insert hinge tabs on foot plate into holes in the frame.

2. Lower foot plate.
