Replacing Light Bulb


Removing

CAUTION: Halogen light bulb contains gas under pressure. The bulb may shatter if the glass is scratched or dropped. Wear eye protection and handle bulb with care when replacing.

IMPORTANT: Do not touch glass headlight bulb with bare skin or bulb may fail prematurely. Use gloves or a cloth when inspecting or replacing the bulb.

TCAL43860
TCAL43860-UN-21MAR13

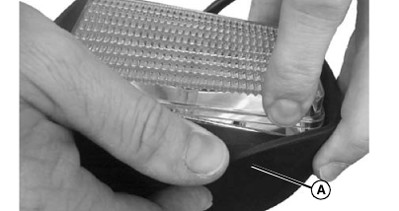

  1. Remove rubber cover (A).

  2. TCAL43861
    TCAL43861-UN-21MAR13

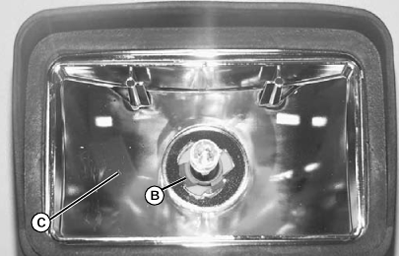

    Rotate bulb fitting (B) and remove from lamp unit (C).


  3. TCAL43862
    TCAL43862-UN-21MAR13

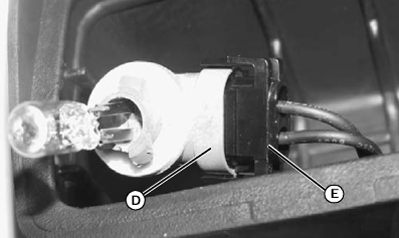

    Separate fitting (D) from plug (E).



Installing

Installing is the opposite of removing light bulb.

DK75838,000071F-19-20130322
