Tightening Drive Wheel Hardware

1. Tighten rear wheel nuts to specification.

   Item	Measurement	Specification
   Rear Wheel Nut	Torque	115 N·m (85 lb-ft)

2.
   TCAL43864-UN-21MAR13

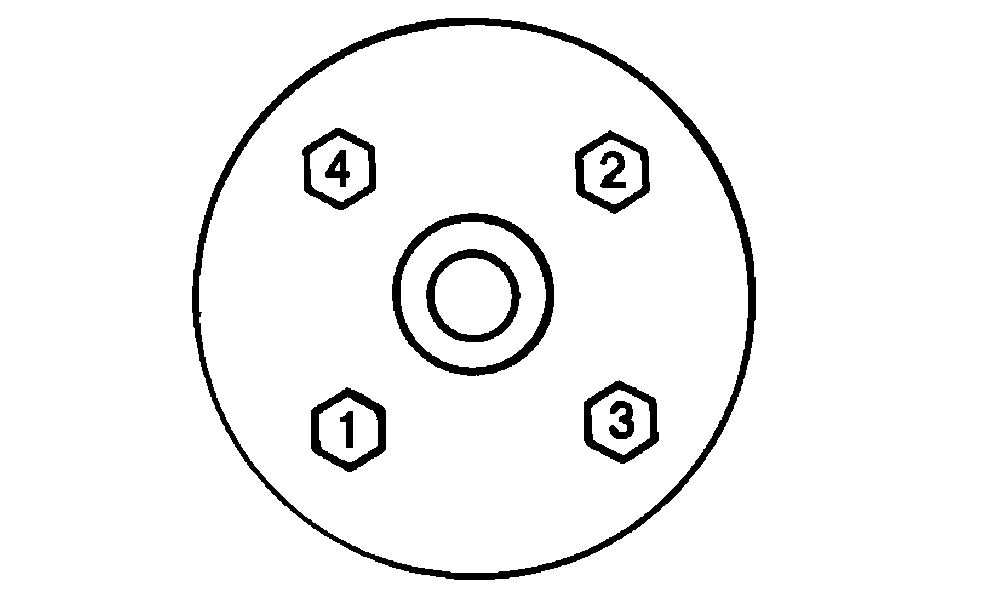

   Tighten wheel nuts in numbered sequence shown. Tighten alternately until recommended torque value is reached.

---
