Tightening ROPS Hardware

1. Park machine safely.(Refer to Parking Safely in the Safety section.)

2. Raise ROPS to upright position and insert lock pins.

3.

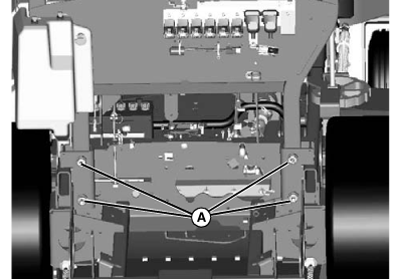

   TCAL43866-UN-21MAR13

   Parts have been removed for photo clarity.

   Tighten the ROPS attaching bolts (A) to specification.

   Item	Measurement	Specification
   ROPS Attaching Bolts	Torque	90 Nm (66 lb-ft)

---
