Input and Output Status Menu

• I/O Status Menu displays current status information for inputs and outputs for enabled circuits. Each screen shows two or three switches and indicates their status.
• Status is either ON (black image on white background) or OFF (white image on black background).

Screen Description	Screen Graphic

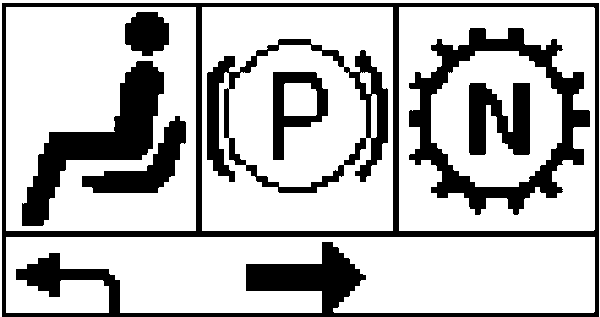

Left: Seat Switch Center: Park Brake Input Right: Neutral Switch	TCT011204-UN-02JUN14

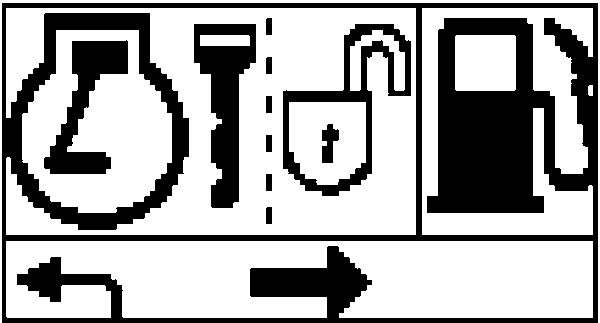

Left: Key Run Position Switch Center: Fuel Pump Enable Output	TCT011205-UN-02JUN14

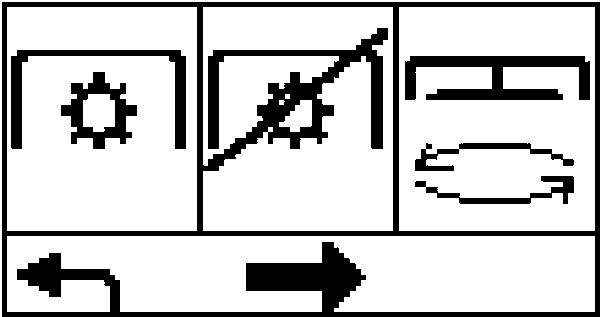

Left: PTO Switch Center: PTO Shut Down Switch Right: Mow Output	TCT011206-UN-02JUN14

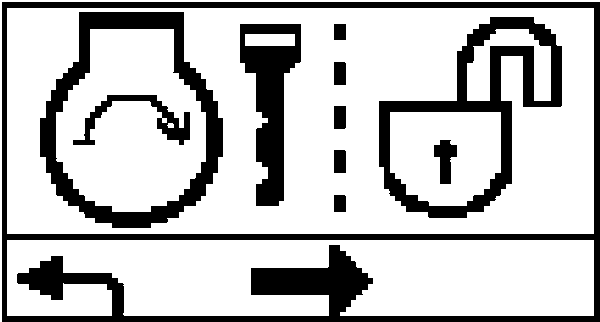

Left: Key Switch Crank Position Status Right: Crank Output Status	TCT011207-UN-02JUN14

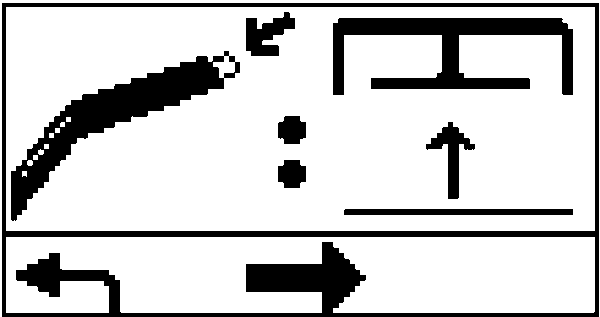

Left: Deck Raise Switch Input Right: Deck Raise Output	TCT011208-UN-02JUN14
