Installing Deck

1.
   TCT011217-UN-02JUN14

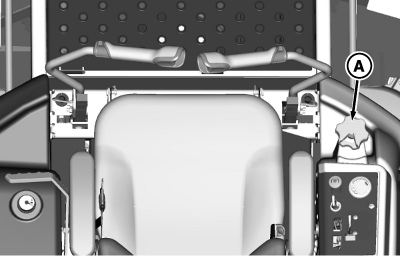

   Turn height-of-cut knob (A) to lowest position.

---




2. CAUTION: Avoid injury! The machine can fall or slip from an unsafe lifting device or supports.

   • Use a safe lifting device rated for the load to be lifted.

   • Lower machine onto jack stands or other stable supports and block wheels before servicing.

   IMPORTANT: Avoid damage! Lift machine at specified points on frame. Using rear bumper as a lift point can damage the frame

   Lift front of machine with a safe lifting device at the center hole of the foot plate.

3. Park machine safely. (See Parking Safely in the SAFETY section.)

4. NOTE: If installing a rear discharge deck, install shield.

   Place deck under machine.

5.
   TCAL43828-UN-21MAR13

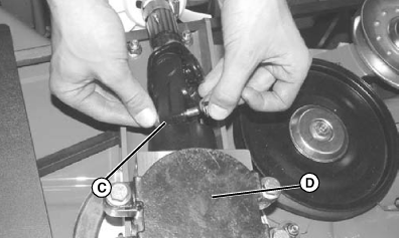

   Mount PTO shaft (C) on gear box (D).

---




6.
   TCT011452-UN-07JUL14

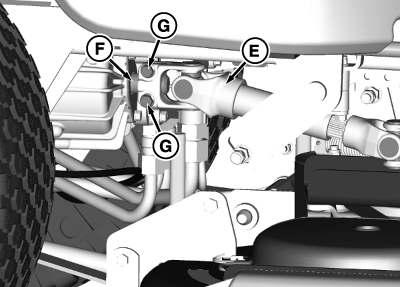

   Mount PTO shaft (E) on pump (F) using two bolts (G) and nuts.

---




7. Move deck backward.

8. NOTE: The following procedure must be done on both sides of the machine.


   TCAL43830-UN-21MAR13

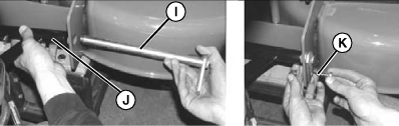

   Install pin (I) through deck and push arm (J) and lock with bolt (K).

---




9.
   TCT011453-UN-07JUL14

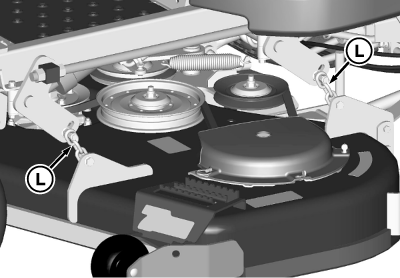

   Install chains (L).

---
