Changing Gearbox Oil

1. Park machine safely. (See Parking Safely in the Safety section.)

2. Lower mower deck to the lowest cutting height position.

3. Remove foot plate.

4. Remove PTO shaft.

5.

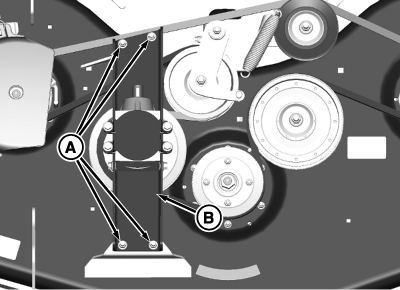

   TCT011447-UN-07JUL14

   Loosen hardware (A).

---




6. Lift bracket (B).

7.

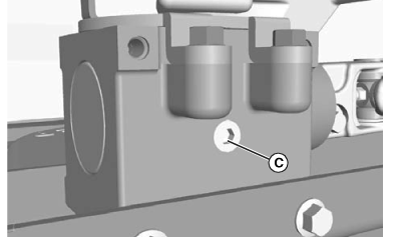

   TCAL43774-UN-21MAR13

   Remove drain plug (C).

---




8. Put a container under gearbox.

9. Turn gearbox bracket to drain oil.

10. Reinstall gearbox bracket.

11. Add 0.325 L (0.34 qt.) oil.

12. Install drain plug.

13. Install PTO and foot plate.
