Adjusting Mower Deck Drive Belt Tension (72 in. SD)

  1. Park machine safely. (See Parking Safely in the Safety section.)

  2. Remove belt shields.

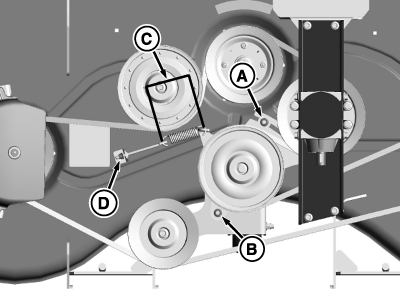

  3. TCT011456
    TCT011456-UN-07JUL14

    Loosen nuts (A) and (B).


  4. Measure length of belt tension spring (C) from hook to hook. Overall length must be 125 mm (4.9 in.) inside hooks.

  5. Adjust nut (D) until length of belt tension spring is correct.

  6. Tighten nuts (A) and (B).

  7. Install belt shields.

OUMX068,000089E-19-20140804
