Removing and Installing Mower Deck Drive Belt Shields (60 in. RD)

CAUTION: Avoid injury! Help prevent serious personal injury. Do not operate the mower without the belt shields installed.

Removing Belt Shields

1. Park machine safely. (See Parking Safely in the Safety section.)

2. Lower mower deck to the lowest cutting height position.

3.

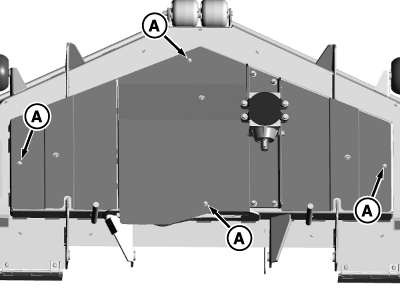

   TCT011455-UN-07JUL14

   Remove four bolts (A).

---




4. Remove shields.

Installing Belt Shields

Installation is the reverse order of removal.
