Lubricating Engine Drive Shaft

  1. Park machine safely. (See Parking Safely in the Safety section).

  2. TCT011467
    TCT011467-UN-14JUL14

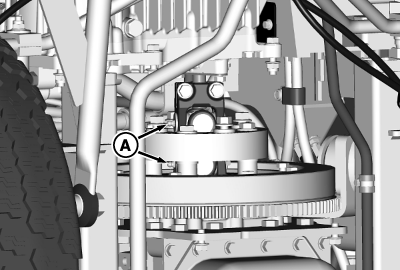

    Picture Note: Components hidden for clarity.

    Lubricate grease fittings (A) with John Deere Multi purpose SD Polyurea Grease.


  3. Pump grease into grease fittings until it can be seen seeping from all four bearing caps on the inside of each universal joint and from the shaft coupler.

OUMX068,00008B4-19-20140714
