Replacing Fuses and Relays

IMPORTANT: Avoid damage! Help prevent machine circuit damage. Make sure replacement fuse is the correct size.

TCAL43856-UN-21MAR13

1. Open hood.

2. Locate and replace defective fuses or relays.

   • Remove relay, fuse block or diode pack.
   • Push in relay, fuse block or diode pack.

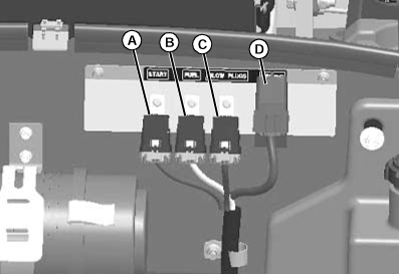

Relays, Fuse and Diode Block Identification

• A = Start Relay
• B = EGR Relay
• C = Glow Plug Relay
• D = Fuse and Diode Block
