Raising and Lowering ROPS


Raising ROPS

  1. Park machine safely. (See Parking Safely in the SAFETY section).

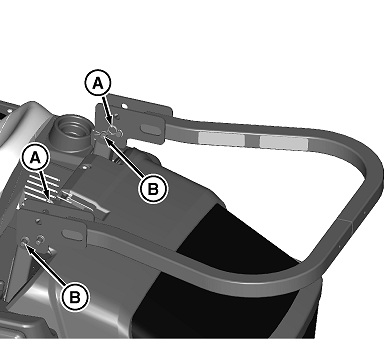

  2. TCT009501
    TCT009501-UN-03JAN14

    Remove spring pin (A) from drilled pin (B) on left and right side of ROPS.


  3. Remove drilled pin from left and right side of ROPS.

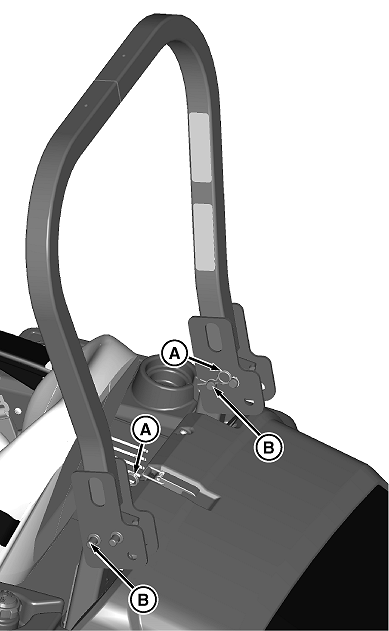

  4. TCT009502
    TCT009502-UN-03JAN14

    Push ROPS into upright position.


  5. Install drilled pin (B) into holes on left and right side of ROPS, and secure in place with spring pin (A).


Lowering ROPS

CAUTION: Always wear seat belt when operating machine with folding Roll-Over Protective Structure (ROPS) in upright position. Do not jump from machine if machine tips.

If ROPS must be folded to operate in a low clearance area, do not use seat belt. Raise ROPS and use seat belt as soon as conditions permit.

NOTE: Perform procedure on both sides of ROPS.

  1. Park machine safely. (See Parking Safely in the SAFETY section).

  2. Remove spring pin (A) from drilled pin (B) on left and right side of ROPS.

  3. Remove drilled pin from left and right side of ROPS.

  4. Pull ROPS rearward to lower.

  5. Install drilled pins and spring pins back into hole in ROPS to secure in place.
