Using Fuel Shut Off Valve

  1. Lift and secure operator seat platform in the raised position.

  2. TCT009503
    TCT009503-UN-03JAN14

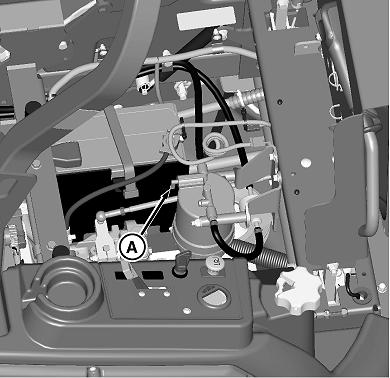

    Locate the fuel shutoff valve (A):

    • To open the fuel shutoff valve, turn the handle so the pointer is facing down (vertical), as shown above.
    • To close the fuel shutoff valve, turn the handle so it is pointing horizontal.


OUO2005,00002EB-19-20140103
