Engaging Mower

CAUTION: Clear mowing area of all bystanders when operating this machine. Thrown objects could cause serious injury or death.

Keep hands and feet away from blades and discharge opening.

Do not mow in reverse unless absolutely necessary.

  1. Start engine.

  2. TCT011301
    TCT011301-UN-16DEC14

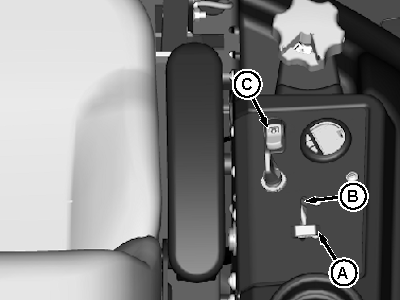

    Move throttle lever (A) to full throttle (B).


  3. Unlock park brake.

  4. Move both motion control levers to the neutral position.

  5. Push PTO switch (C) on to engage mower.

  6. Push motion control levers forward slowly. Mow at a safe travel speed.

NOTE: Press the PTO shut-off switch in the right motion control lever handle or push the PTO switch (C) off to disengage mower.

OUO2005,00002EC-19-20141216
