Flushing Cooling System

IMPORTANT: Do not operate engine without coolant.

• Do not pour coolant into the radiator when the engine is hot.

  1. Drain cooling system completely.

  2. Fill cooling system with clean water and cooling system cleaner. Follow directions on can.

  3. Fill coolant tank 1/3 full.

  4. TCT009510
    TCT009510-UN-03JAN14

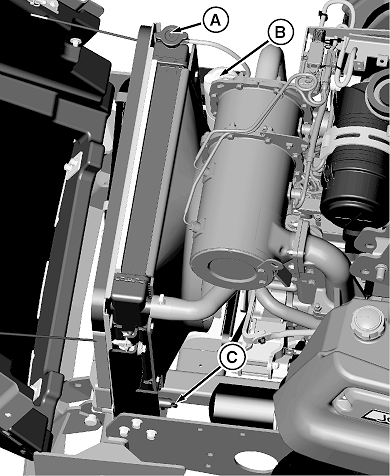

    Install and tighten radiator cap (A) and coolant tank cap (B).


  5. Start and run engine until operating temperature is reached.

  6. Open radiator drain cock (C). Drain the cooling system immediately before rust and dirt settles.

  7. Close drain cock.

  8. Fill cooling system.

OUO2005,00002F2-19-20140106
