Cleaning Hydraulic Oil Cooler

CAUTION: Avoid injury! Compressed air can cause debris to fly a long distance.

• Clear work area of bystanders.

• Wear eye protection when using compressed air for cleaning purposes.

• Reduce compressed air pressure to 210 kPa (30 psi).

IMPORTANT: Avoid damage! To ensure proper cooling, keep the cooling fins clean at all times. Operating the machine with obstructed cooling fins could cause damage due to overheating.

  1. Park machine safely. (See Parking Safely in the Safety section.)

  2. Open hood.

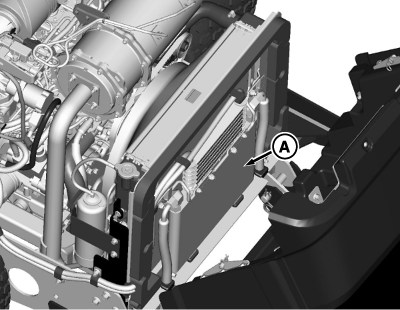

  3. TCT011468
    TCT011468-UN-14JUL14

    Clean hydraulic cooler (A) with a rag, brush, or compressed air.


  4. Close hood.

OUO2005,00002F4-19-20140714
