Using the Throttle Lever

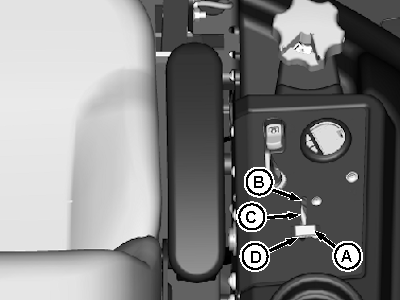

TCT009516
TCT009516-UN-16DEC14


  • Push throttle lever (A) all the way forward to the fast position (B) when mowing.
  • Move throttle lever (A) to the half throttle position (C) when starting and warming the engine.
  • Pull throttle lever (A) to rear to slow position (D) to idle engine. Do not run engine at slow idle any longer than necessary.

OUO2005,0000301-19-20140106
