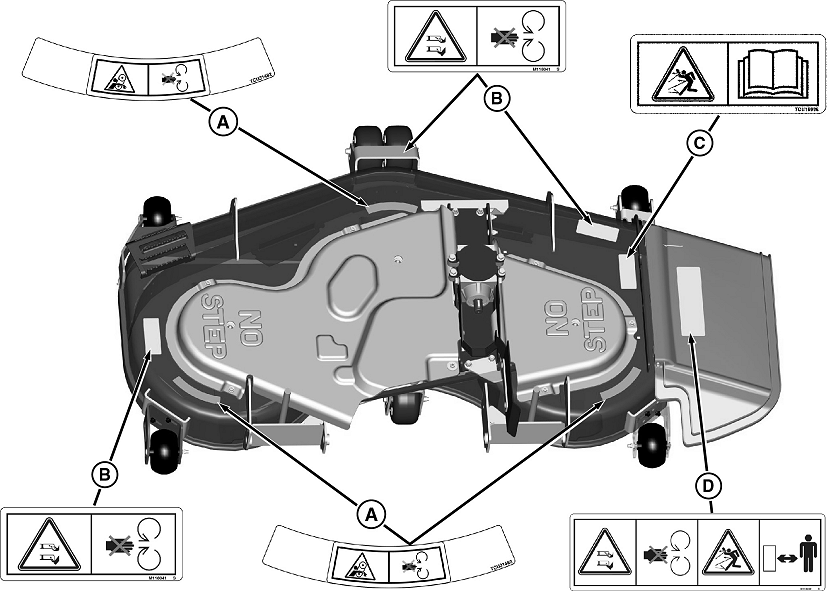

Safety Label Location (60 and 72 in. Side Discharge)

NOTE: A 60 in. deck is shown below. A 72 in. deck uses the same labels in similar locations.

TCT010798-UN-03MAR14

No text labels are required for certain parts of the world. Your machine may not be equipped with these labels.

A - Avoid Injury From Rotating Belts TCU31482

B - Avoid Injury From Rotating Blades M118041

C - Avoid Injury From Thrown Objects TCU18996

D - Avoid Injury From Rotating Blades and Thrown Objects M118040
