Adjust Implement Side-to-Side Sway

1. NOTE: Check implement operator manual procedure for adjusting sway links. When sway links have been properly adjusted, the position of links controls the side sway of the implement.

   Lower any rear-mount implement to the ground.

2. Park machine safely.

3.

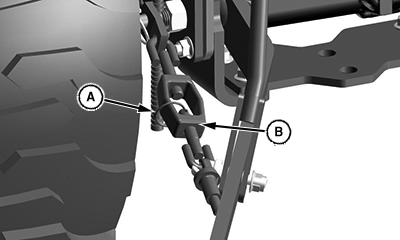

   LV26801-UN-10NOV16

   A - Locking Ring

   B - Turnbuckle

   Remove locking ring (A).

---




4. To adjust length, rotate the turnbuckle (B).

5. Install locking ring.
