Check Air Filter Hose

NOTE: Inspect air intake system hoses and connections each time the air filter is changed, or at a minimum yearly.

1. Park machine safely.

2. Raise hood.

3. NOTE: Visually inspect hose for cracks and wear. Squeeze hose to check for deterioration. Hose should not be hard and brittle, nor soft or swollen.

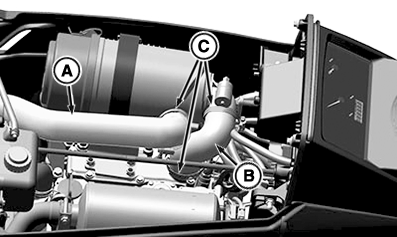

   LV26819-UN-21NOV16

   A - Air Intake Hose

   B - Air Filter Hose

   C - Hose Clamp

   Check air intake hose (A) and air filter hose (B).

---




4. Tighten hose clamps (C) if necessary.

5. Lower hood.
