Adjust Height-of-Cut (If Equipped)
LV26741-UN-04NOV16

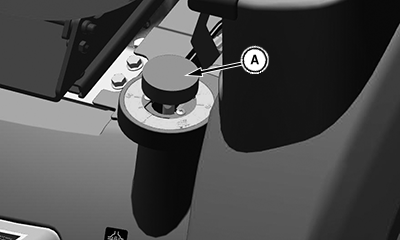

Mower Height -of-Cut Dial Shown
A - Mower Height-of-Cut Dial
Use the mower height-of-cut dial (A) to adjust mower cutting height and lock mower lift draft arms in raised or transport lock position. See your mower deck operator’s manual for instructions.IMPORTANT: To avoid machine damage when operating without a mower, fully raise the mower lift draft arms and turn the height-of-cut dial to the transport position to lock the arms in raised position.
|
UP00731,00000C6-19-20190114 |
