Drive Machine

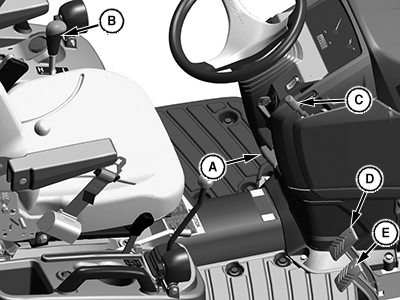

LV27354-UN-23JAN17

A - Park Brake

B - Transmission Range-Shift Lever

C - Hand Throttle

D - Forward Pedal

E - Reverse Pedal

CAUTION: Avoid Injury! Check to be sure that area is clear of any bystanders before operating the machine.

IMPORTANT: Avoid damage! To prevent transmission damage, stop machine motion completely before shifting the transmission range-shift lever.

1. Start the engine.
2. Unlock the park brake (A).
3. Choose low “L” or high “H” speed range on the range-shift lever (B).
4. Move the throttle lever (C) to the desired operating speed.
5. To move forward, slowly depress the forward travel pedal (D) down. To move, slowly depress the reverse travel pedal (E) down to move in reverse.
6. To stop the machine and change the speed range release the travel pedal.
7. Fully stop the machine before turning off the engine.
