Service Cab Air Filter

NOTE: This cab is a category 1 type cab, for protection against hazardous substances.

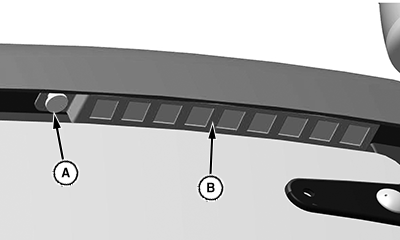

  1. LV28424
    LV28424-UN-16MAY17

    Cab Air Filter

    Loosen bolt (A) and air filter cover pivots down.


  2. Remove the air filter.

  3. Clean the filter with compressed air. Inspect the filter for damage and replace if necessary.

  4. Install the filter and cover, then secure with bolt (A).

  5. Repeat for opposite side of tractor.

UP00731,00008D4-19-20190109
