Front Windshield Wiper

LV30417
LV30417-UN-01FEB19

Front Windshield Wiper

LV30538
LV30538-UN-12MAR19

Washer Fluid Reservoir

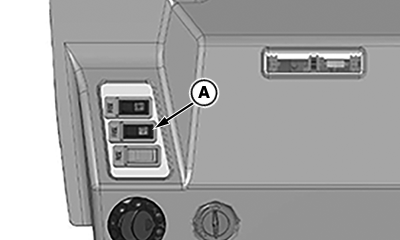

A - Front Windshield Wiper Switch

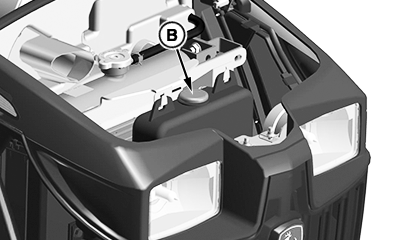

B - Fluid Reservoir

To turn the front windshield wiper on and off, use the wiper switch (A).

The washer fluid reservoir (B) is located under the hood of the tractor. Fill the reservoir with windshield washer fluid as required. In cold climates, fill with non-freezing windshield washer fluid. Reservoir only supplies the front wiper.
