Replace Relays and Fuses

IMPORTANT: Avoid damage! If incorrect replacement fuses are used, the electrical system can be damaged. Replace the bad fuse with a fuse of the same amperage rating.


Locate Fuses and Relays

All the electrical circuits are protected by the fuses. ampere rating is marked on each fuse, plus fuses are color coded to ensure proper replacement.

Fuses

Fuse Rating

Color

10 A

Red

15 A

Blue

20 A

Yellow

30 A

Green


Fuse Location

  1. Park the machine safely.

  2. Raise the hood and remove the right side panel.

  3. LV27342
    LV27342-UN-25JAN17

    LV30327
    LV30327-UN-24SEP18

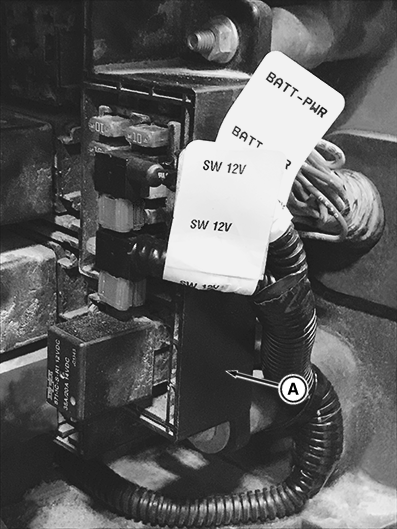

    Load Center-3rd Function (If equipped)

    LV30309
    LV30309-UN-21SEP18

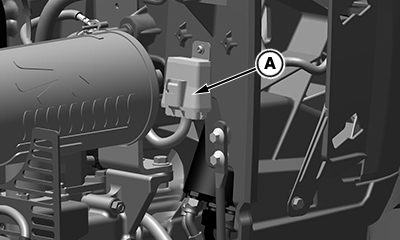

    Relay Load Center-3rd Function (If equipped)

    A - Load Center

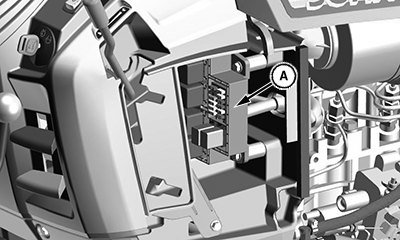

    Locate the load center (A).


  4. Identify the fuse or relay in the fuse block.

  5. NOTE: If third function kit is installed, there are two fuse taps that contain two fuses in each.

    Pull out the defective relay or fuse.

  6. Replace with the new relay or fuse.

  7. For third function kit only:

    1. Fuse tap labeled with “SW 12 V” must be installed back into location (K).

    2. Fuse tap labeled with “BATT-PWR” must be installed back into location (H).

  8. Install the side panel.

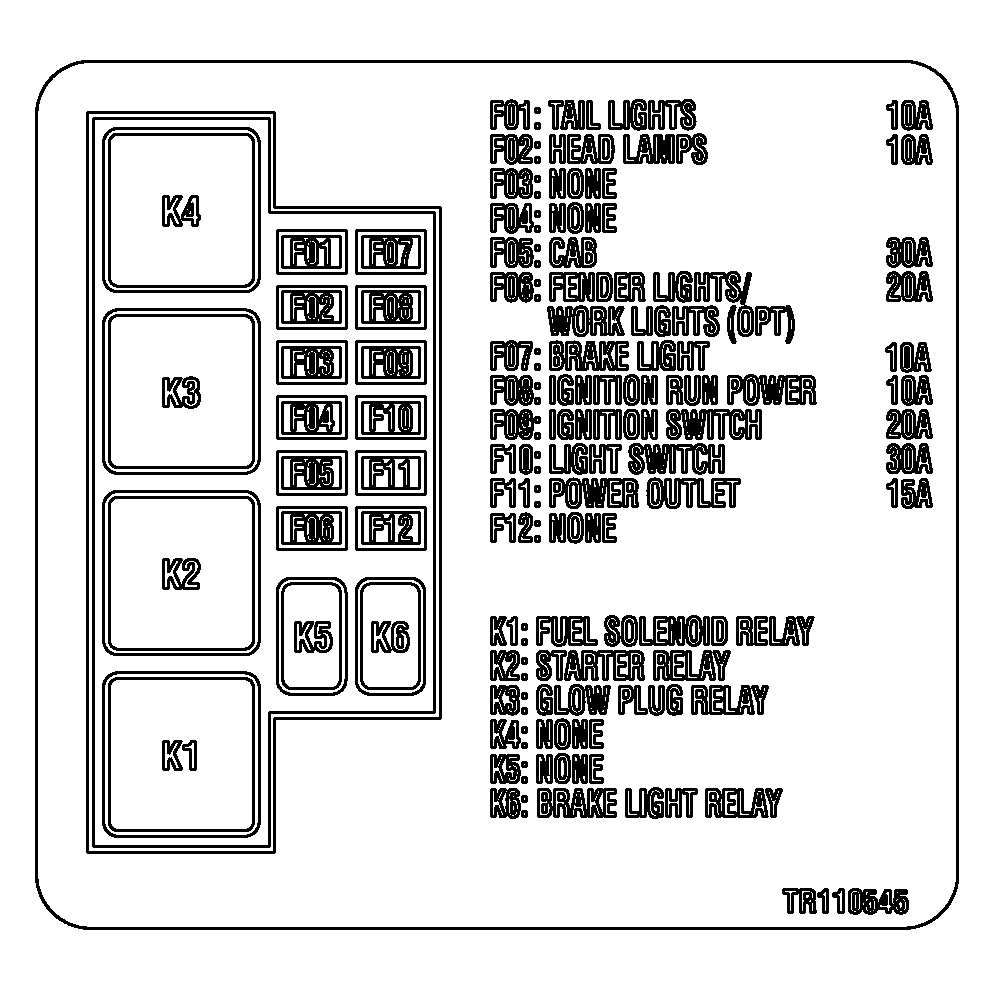

Fuse and Relay Size and Function

LV30478
LV30478-UN-28FEB19

F01 - Fuse—Taillights (10 A)

F02 - Fuse—Headlights (10 A)

F03 - None

F04 - None

F05 - Cab (30 A)

F06 - Fuse—Fender Lights (1025R only) and Worklights (Option) (20 A)

F07 - Fuse—Brake Lights (10 A)

F08 - Fuse—Ignition Run Power (10 A)

F09 - Fuse—Ignition Switch (20 A)

F10 - Fuse—Light Switch (30 A)

F11 - Fuse—Power Outlet (15 A) (1025R only)

F12 - None

K1 - Fuel Solenoid Relay

K2 - Starter Relay

K3 - Glow Plug Relay

K4 - None

K5 - None

K6 - Brake Light Relay

LV30532
LV30532-UN-06MAR19

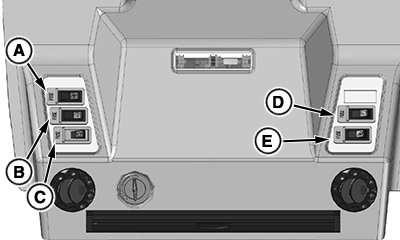

Fuse Location - Cab Options

A - Fuse—Fan (10 A)

B - Fuse—Front Wiper (7.5 A)

C - Fuse—Beacon Light (7.5 A)

D - Fuse—Rear Wiper (7.5 A)

E - Fuse—Work Light (5 A)

LV30326
LV30326-UN-24SEP18

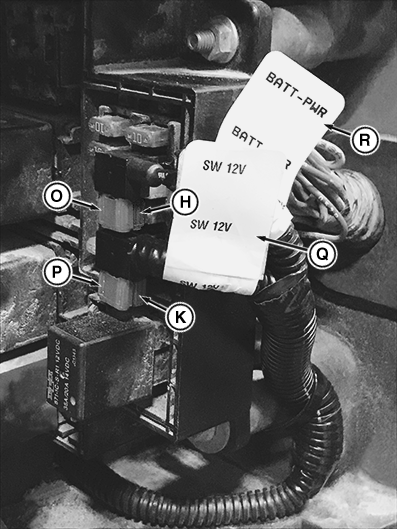

With Third Function (If Equipped)

A - Fuse—Ignition Run Power (10 A)

B - Fuse—Power Outlet (1025R only)

C - Fuse—Battery Power (10 A)

D - Fuse—12 V Switched Power (10 A)

E - Label—SW 12 V

F - Label—BATT-PWR

LV30536
LV30536-UN-11MAR19

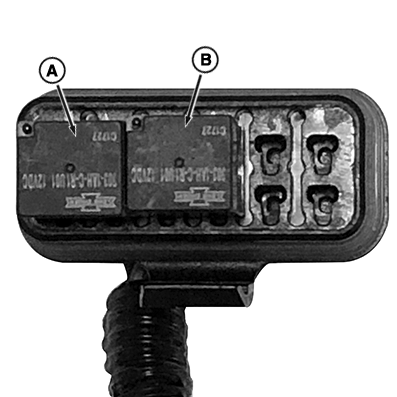

Relay Load Center-3rd Function (If Equipped)

A - Relay—Third Function Retract

B - Relay—Third Function Extend
