Windows


Front Window

CAUTION: Avoid injury from broken glass. Windshield may shatter if contacted by raised front end loader. Do not operate loader with windshield open.

LV30547
LV30547-UN-19MAR19

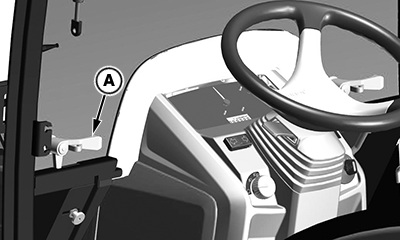

A - Front Window Latch

Rotate front window latch (A) to push window open.


Rear Window

LV30548
LV30548-UN-20MAR19

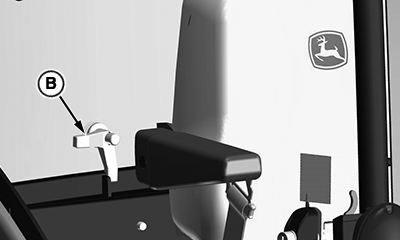

B - Rear Window Latch

Rotate rear window latch (B) to push rear window open.

UP00731,0000908-19-20191119
