Engine Oil

TS1691-UN-18JUL07

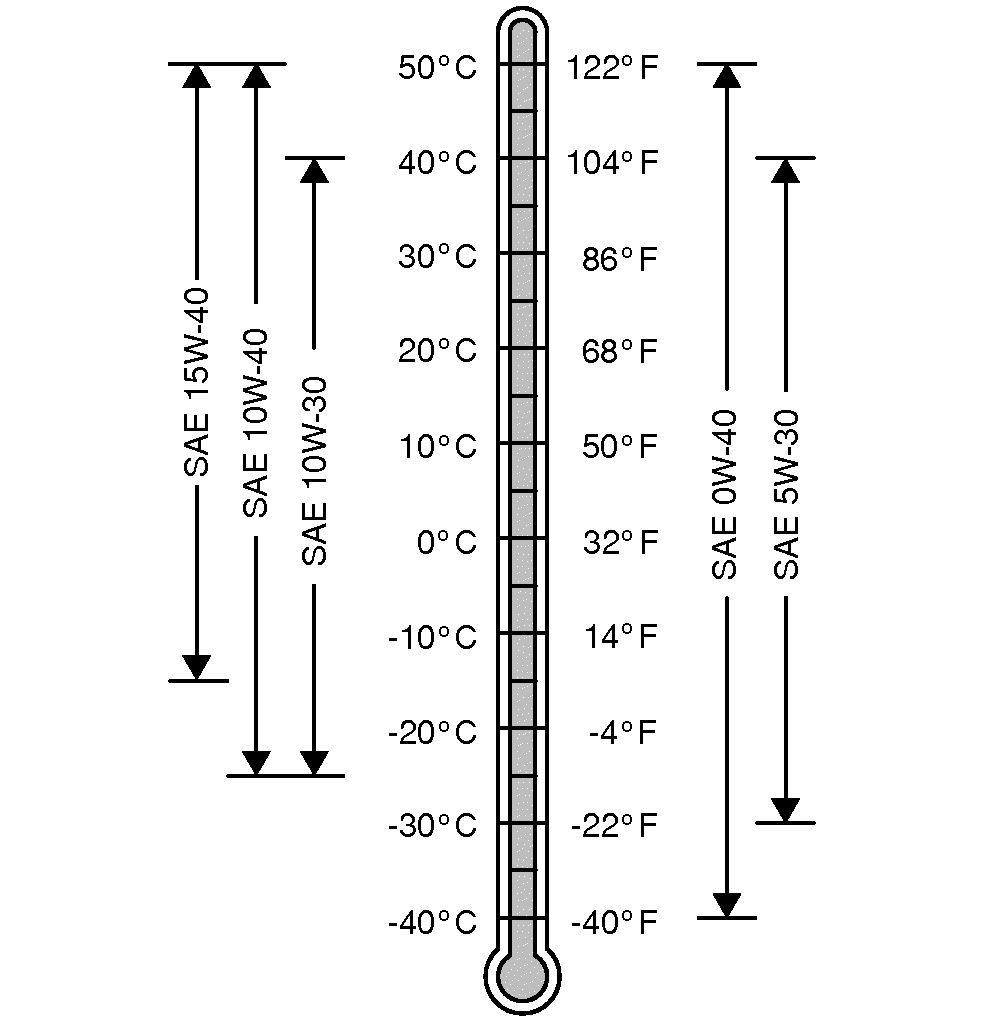

Oil Viscosities for Air Temperature Ranges

Use oil viscosity based on the expected air temperature range during the period between oil changes.

The following John Deere oils are preferred:

• Plus-50™ II
• Torq-Gard™ Supreme

Other oils may be used if above John Deere oils are not available, provided they meet the following specification:

• API Service Classification CD, CF, CF—4, CI—4, CJ—4, CK—4 or CK—4
• ACEA Specification E—3, E—4, E—5 or E—6
• JASO Specification DH—1 or DH—2

Diesel fuel quality and fuel sulfur content must comply with all existing emissions regulations for the area in which the engine operates.
