Lubricate MFWD Driveshaft

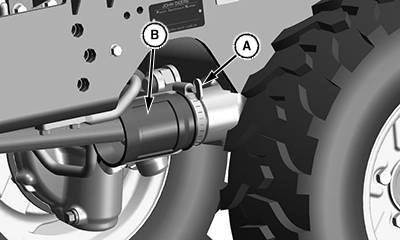

LV26895-UN-16NOV16

Front MFWD Driveshaft Shield

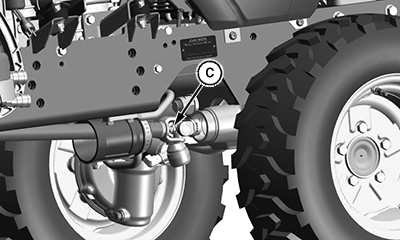

LV26894-UN-16NOV16

Front MFWD Driveshaft

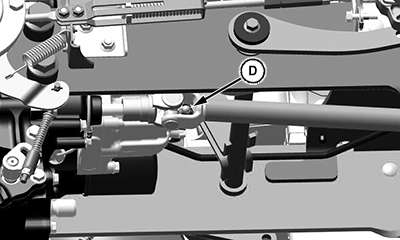

LV26896-UN-16NOV16

Rear MFWD Driveshaft

A - Hose Clamp

B - Front MFWD Driveshaft Shield

C - Front MFWD Driveshaft Grease Fitting

D - Rear MFWD Driveshaft Grease Fitting

• Loosen the hose clamp (A) and remove front MFWD driveshaft shield (B) from housing.
• Lubricate front MFWD driveshaft grease fitting (C) and rear MFWD driveshaft grease fitting (D) with John Deere multi-purpose grease.
• Install MFWD shield (B) on housing and tighten the hose clamp (A).
