Check Selective Control Valve

1.

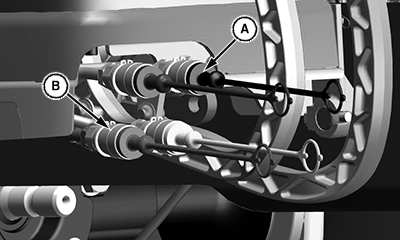

   LV26898-UN-16NOV16

   SCV Couplers

   A - Dust Plug

   B - Coupler

   Check the dust plugs (A) for damage, replace as needed.

---




2. Clean dirt and debris from the selective control valve couplers (B).

3. Check selective control valve couplers (B) for oil leakage. Contact your John Deere dealer for service.
