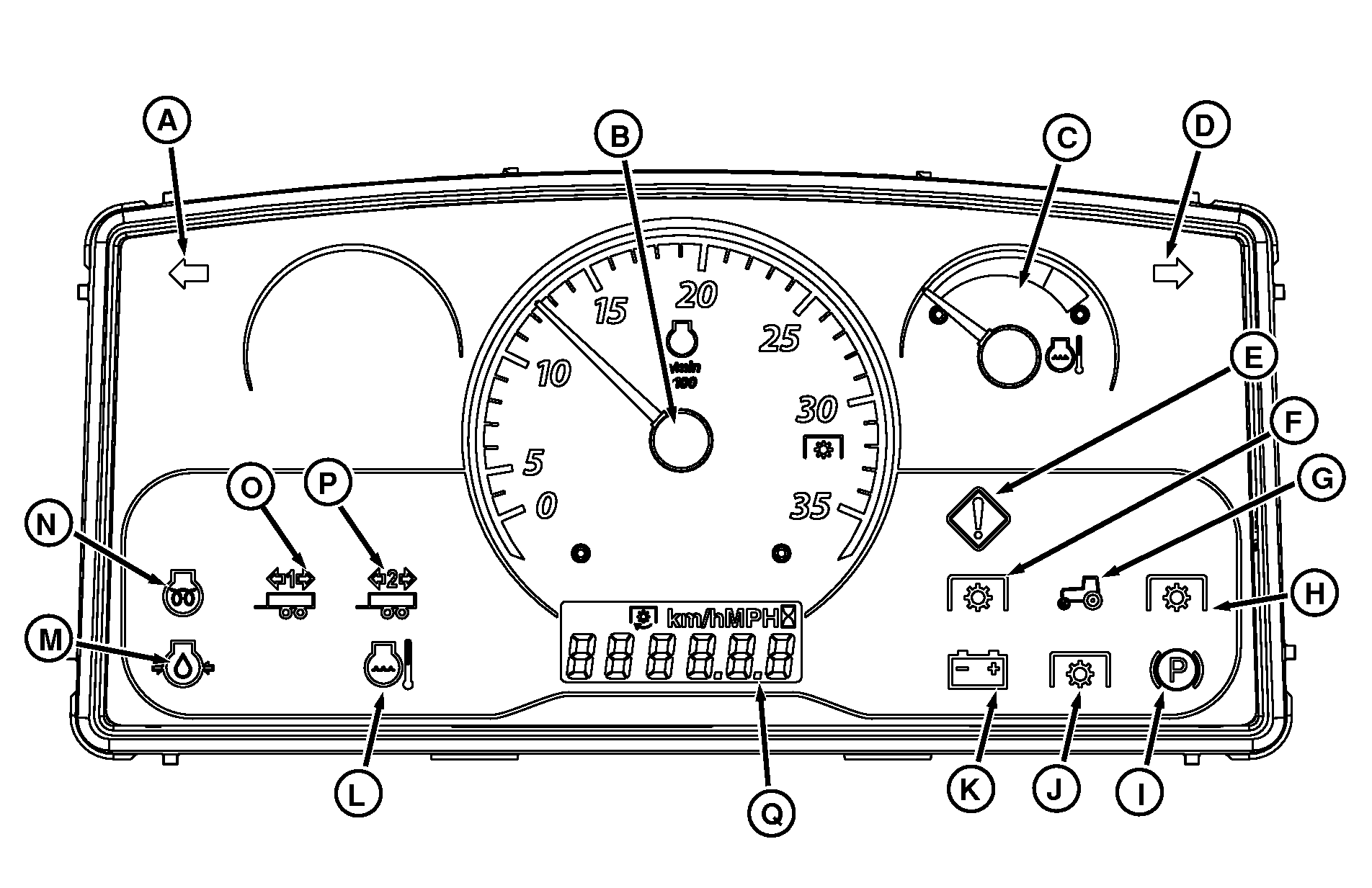

Instrument Control Panel

LV26903-UN-08MAR17
Instrument Control Panel
A - Left Turn Signal/Warning Flasher Indicator
Icon - This indicator light will turn on and flash when the
turn signal switch is moved to the left turn position, when the hazard
lights are on, or when the headlights/taillights are in the ON position.
B - Tachometer - Shows engine speed.
Engine speed is shown in hundreds.
C - Engine Coolant Temperature Gauge - This gauge indicates the temperature of the cooling system.
D - Right Turn Signal/Warning Flasher Indicator
Icon - This indicator light will turn on and flash when the
turn signal switch is moved to the right turn position, when the hazard
lights are on, or when the headlights/taillights are in the ON position.
E - Service Alert Indicator Icon -
This light flashes, indicating that performance or operational problem
is detected that needs to be resolved as soon as possible.
F - PTO Indicator Icon - Not used.
G - Tractor PTO Indicator Icon - Not
used.
H - Rear PTO Indicator Icon - Not
used.
I - Park Brake Light- Illuminates
when the ignition key is in the ON position and the park brake is
engaged.
J - Rear and Mid PTO Indicator Icon - Illuminates when the Rear or Mid PTO is engaged.
K - Alternator/Battery Charging Icon - Illuminates when the ignition key is in the ON position and the
engine is not running. It also indicates an electrical load has exceeded
alternator capacity and continued operation could deplete battery
reserve.
L- Engine Coolant Temperature Icon - Illuminates when the engine coolant temperature is above the high
temperature limit.
M - Engine Oil Pressure Icon - Illuminates
when there is insufficient engine oil pressure to continue operation.
N - Engine Glow Plug Indicator Icon - Illuminates when the ignition key is in the ON position and the
engine glow plug is initially heated.
O - Trailer 1 Indicator Icon - Not
used.
P - Trailer 2 Indicator Icon - Not
used.
Q - Information Display - Displays
general tractor information.
|
|
UP00731,00000CA-19-20191028
|
|
