Use Optional Front Weights

LV26804-UN-10NOV16

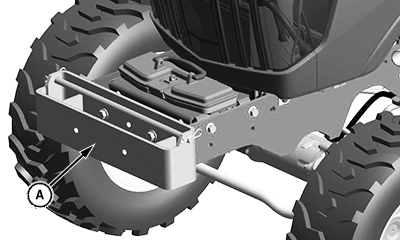

A - Front Weight Bracket

Avoid damage! Do not install weights on the front bumper plate, damage to can occur to the front grille. Use optional bolt-on bracket for front weights.

The front weight bracket (A) is an optional extension bracket that bolts on to the front of the machine frame. The bracket holds up to seven Quik-Tatch™ weights.

Each weight is 19 kg (42 lb).

Quik-Tatch weights and attaching hardware are available at your John Deere dealer.

See your implement operator’s manual for additional information and required number of weights to use.
