Use Front Quick Hitch

Install and Remove Implement

1.

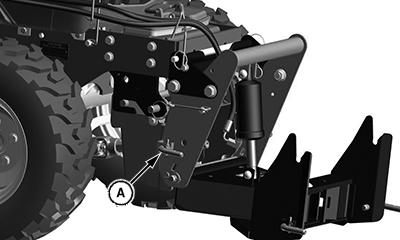

   LV27456-UN-08FEB17

   A - Locking Pin

   Move the locking pins (A) to the open position.

---




2. Lower the hitch completely.

3. Drive up to the implement.

4. Raise the hitch, aligning the upper hooks.

5. Ensure the locking pins engage.

6. To remove:

   1. Move the locking pins (A) to the open position.

   2. Lower the hitch completely.

   3. Drive away from the implement.
