Check Air Restriction Indicator

  1. Park the machine safely.

  2. Raise hood.

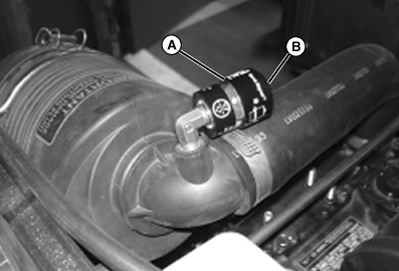

  3. LVAL38313
    LVAL38313-UN-21AUG12

    A - Service Window

    B - Indicator Housing

    Check the service window (A) on the indicator.

    1. Change the air filter if the service window is red.

    2. Press the top of the indicator housing (B) to reset the indicator after service.


  4. Lower hood.

UP00731,00002CC-19-20170425
