Operate Selective Control Valve (SCV) Continuous Flow Switch

  1. Machine damage can occur if the SCV is used in the continuous flow position for a long period of time. The hydraulic system becomes overheated and the hydraulic oil overheat light (B) illuminates.

    LV30401
    LV30401-UN-07NOV18

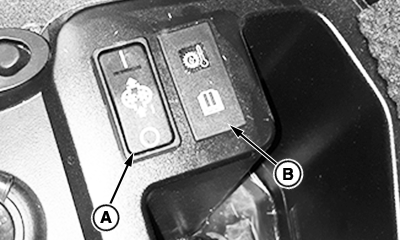

    Cab Tractor—Continuous Flow Switch

    A - Continuous Flow Switch

    B - Hydraulic Oil Temperature Overheat Light

    Move the continuous flow switch (A) to the “I” position to enable the continuous flow for the SCV.


  2. To return to the neutral position, move the switch to the “O” position.

UP00731,00005F2-19-20190131
