Replace Relays and Fuses

Avoid damage! If incorrect replacement fuses are used, the electrical system can be damaged. Replace the bad fuse with a fuse of the same amperage rating.

Locate Fuses and Relays

All electrical circuits are protected by fuses. ampere rating is marked on each fuse, plus fuses are color coded to ensure proper replacement.

Fuses
Fuse Rating	Color
10 A	Red
15 A	Blue
20 A	Yellow
30	Green

Fuse Location

1. Park machine safely.

2. Remove right side panel.

3.

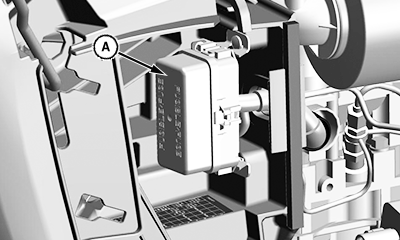

   LV26830-UN-16NOV16

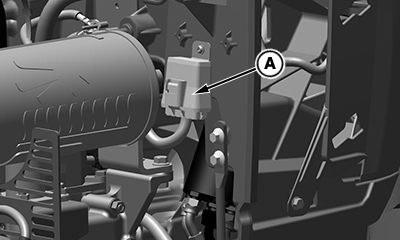

   LV30309-UN-21SEP18

   Relay Load Center-3rd Function (If equipped)

   A - Load Center Cover

   Remove load center cover (A).

---




4. Identify fuse or relay in the fuse block.

5. Pull out the defective relay or fuse.

6. Replace with the new relay or fuse.

7. Install load center cover.

8. Install side panel.

Fuse and Relay Size and Function

LV30531-UN-07MAR19

Load Center

F01 - Tail Lights (10 A)

F02 - Head Lights (20 A)

F03 - Work Lights (20 A)

F04 - Brake Lights (10 A)

F05 - Ignition Power (15 A)

F06 - V Battery (20 A)

F07 - Light Switch (20 A)

F08 - Power Port, Battery Port, Junction Block (15 A)

F11 - Accessory Power, Junction Block (10 A)

F21 - Cab Connector (30 A)

F22 - Cab Connector 2 - 15 A

K14 - Brake Lights Relay

K21 - Cab Ready Relay

LV30533-UN-06MAR19

Fuse Location - Cab Options

A - Fuse—Fan (10 A)

B - Fuse—Rear Wiper (7.5 A)

C - Fuse—Front Wiper (7.5 A)

D - Fuse—Work Light (5 A)

E - Fuse—Beacon Light (10 A)

LV30536-UN-11MAR19

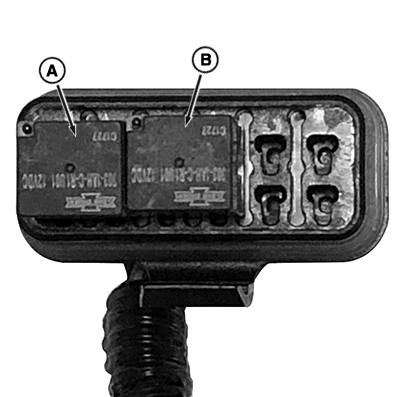

Relay Load Center-3rd Function (If Equipped)

A - Relay—3rd Function Retract

B - Relay—3rd Function Extract
