Windows


Front Window

Avoid injury from broken glass. Windshield shatters if contacted by raised front-end loader. Do not operate the loader with the windshield open.

LV30543
LV30543-UN-19MAR19

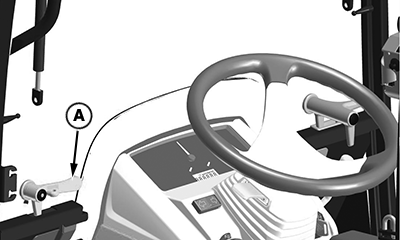

A - Front Window Latch

To open the front window, rotate the front window latch (A).


Rear Window

LV30544
LV30544-UN-20MAR19

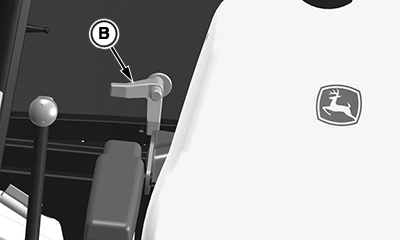

B - Rear Window Latch

To open the rear window, rotate the rear window latch (B).

UP00731,000090A-19-20190408
