Foot Operated Controls

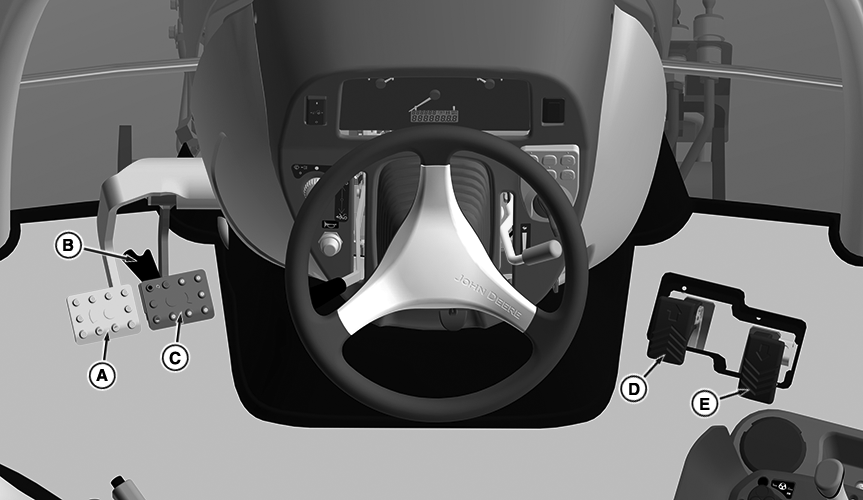

LV30074-UN-19APR18

Hydrostatic

A - Left Brake Pedal

B - Brake Pedals Lock Tab

C - Right Brake Pedal

D - Forward Travel Pedal

E - Reverse Travel Pedal

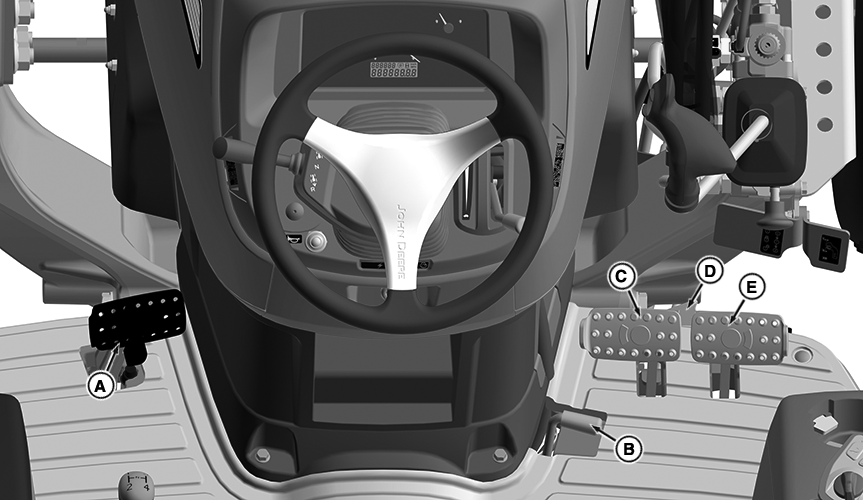

LV30075-UN-19APR18

PowrReverser

A - Clutch Pedal

B - Foot Throttle

C - Left Brake Pedal

D - Brake Pedals Lock Tab

E - Right Brake Pedal
