Testing the Seat Switch

PowrReverser Transmission

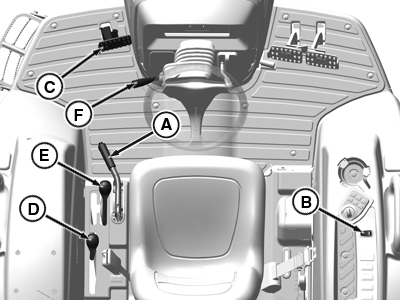

LVP10045-UN-20SEP19

A - Park Brake

B - PTO Switch

C - Clutch Pedal

D - Transmission Range Shift Lever

E - Transmission Gear Shift Levers

F - Reverser Lever

1. Sit on operator’s seat.

2. Lock park brake (A).

3. Depress clutch pedal (C) and move the transmission range shift lever (D), transmission gear shift levers (E), and reverser lever (F) to the N (neutral) position.

4. Start engine.

5. Engage the PTO.

6. Raise up slightly from operator’s seat. Do not dismount machine.

   Result: PTO will disengage and engine will remain running.

Hydrostatic Transmission

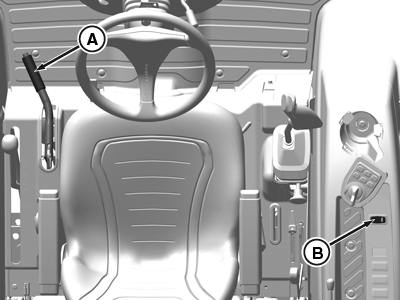

LVP10046-UN-20SEP19

A - Park Brake

B - PTO Switch

1. Sit on operator’s seat.

2. Do not depress the hydrostatic travel pedals.

3. Lock park brake (A).

4. Start engine.

5. Engage the PTO.

6. Raise up slightly from operator’s seat. Do not dismount machine.

   Result: PTO will disengage and engine will remain running.
