Adjusting Seat

CAUTION: To avoid accidents, adjust seat before driving.

Seat Adjustment—OOS

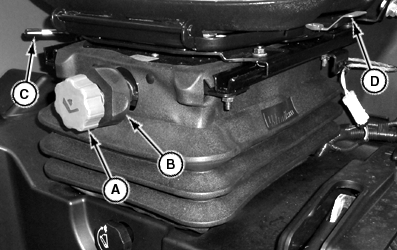

LV21384-UN-18MAR14

A - Height Adjustment Knob

B - Weight Adjustment Knob

C - Forward/Backward Adjustment Lever

D - Swivel Control Lever

Adjust to each operator's personal preference; there are four available seat adjustments:

Height: Turn height adjustment knob (A) to raise or lower seat.

Weight: While seated turn weight adjustment knob (B) clockwise to increase seat pressure. Turn weight adjustment knob counterclockwise to decrease seat pressure.

Forward or Backward: Pull forward/backward adjustment lever (C) forward to move seat to desired position.

Swivel: Lift swivel control lever (D) up to turn seat.

Seat Adjustment—Cab

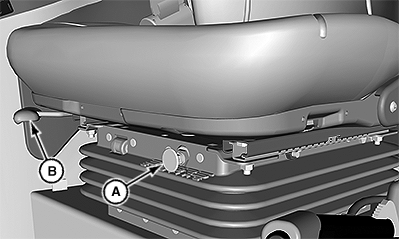

LV21371-UN-17MAR14

A - Weight Adjustment Knob

B - Forward/Backward Adjustment Lever

Adjust to each operator's personal preference; there are two available seat adjustments:

Weight: While seated with the engine running, pull weight adjustment knob (A) out to increase seat pressure. Push adjustment knob in to decrease seat pressure. Release knob to lock in position.

Forward or Backward: Lift forward/backward adjustment lever (B) up to move seat to desired position.
