Replacing Light Bulbs—Open Operator Station

NOTE: Taillight can be serviced by removing the rear assembly lens only.

1. Park machine safely. (See Parking Safely in the Safety section.)

2.

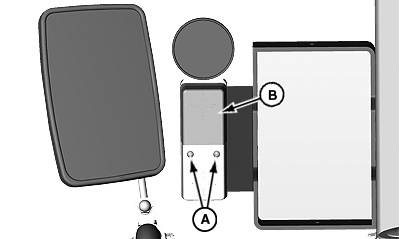

   LV19366-UN-14OCT13

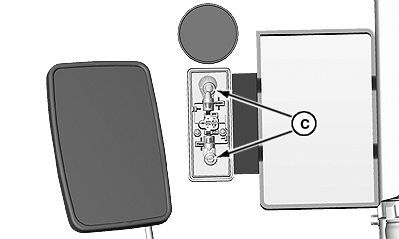

   LV19367-UN-14OCT13

   A - Screw (2 used)

   B - Lens

   C - Bulb

   Remove two screws (A) and lens (B).

---




3. Pull bulb (C) straight out to remove. Do not twist bulb.

4. Push new bulb into socket.

5. Check operation of tail lights and turn signals.

6. Install lens and screws.
