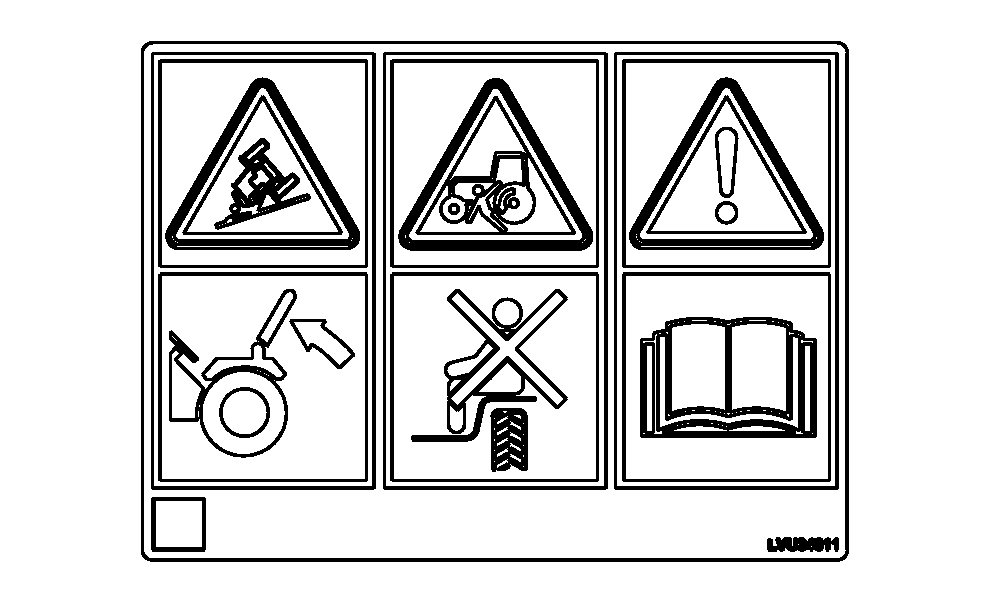

ROPS in Normal Position, Riders, and Operator’s Manual

LV28433-UN-18MAY17

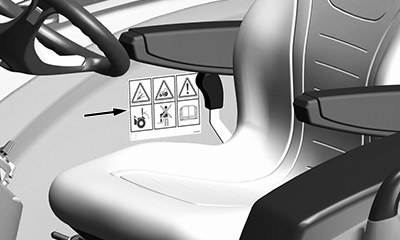

LV29064-UN-01AUG17

RH Inside Fender

CAUTION: Avoid crushing injury or death during rollover.

Use Foldable ROPS and Seat Belt Properly.

• If this machine is equipped with a foldable roll-over protective structure (ROPS), keep the ROPS in the fully extended and locked position.

  USE a seat belt when you operate with a ROPS in the fully extended position.

  • Hold the latch and pull the seat belt across the body.
  • Insert the latch into the buckle. Listen for a click.
  • Tug on the seat belt latch to make sure the belt is securely fastened.
  • Snug the seat belt across the hips.
• If this machine is operated with the ROPS folded (e.g., to enter a low building), drive with extreme caution. DO NOT USE a seat belt with the ROPS folded.
• Return the ROPS to the raised, fully extended position as soon as the machine is operated under normal conditions.

CAUTION: Avoid falling and being struck.

Keep riders off. Riders on machine are subject to injury such as being struck by foreign objects and being thrown off of the machine. Riders also obstruct the operator's view resulting in the machine being operated in an unsafe manner.

CAUTION: Avoid the risk of injury.

This Operator’s Manual contains important information necessary for safe machine operation and explanation of safety signs. Carefully observe all safety rules to avoid accidents.
