Right-Hand Console Controls

APY20335-UN-08AUG19

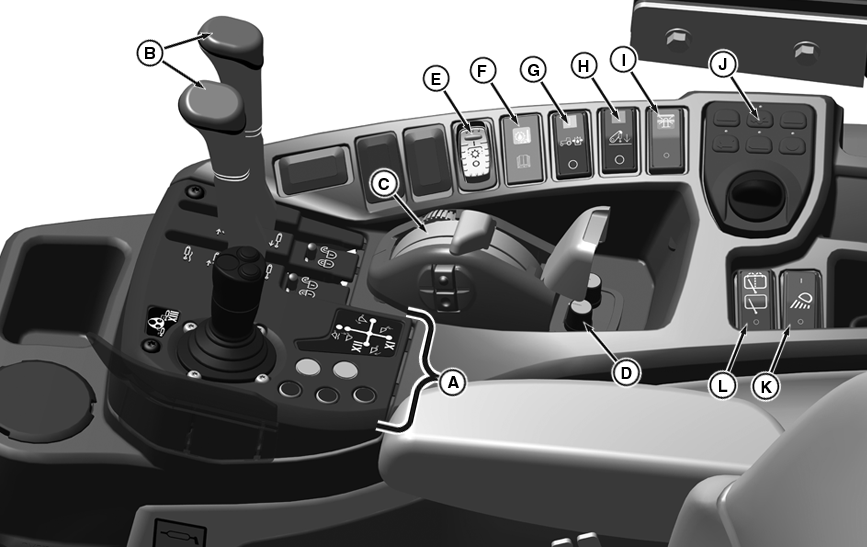

Cab—Electrohydraulic Mid SCV

A - Mid SCV Controls

B - Rear SCV Controls

C - Rear Hitch Control

D - Rear Hitch Rate-of-Drop Control and Rear Hitch Height Limit

E - Rear PTO Engagement Switch

F - Hydraulic Oil Temperature Indicator

G - Diverter Switch

H - Hitch Down Force Switch

I - Beacon Light Switch

J - eThrottle Controls

K - Rear Work Lights Switch

L - Rear Wiper Switch

APY20336-UN-08AUG19

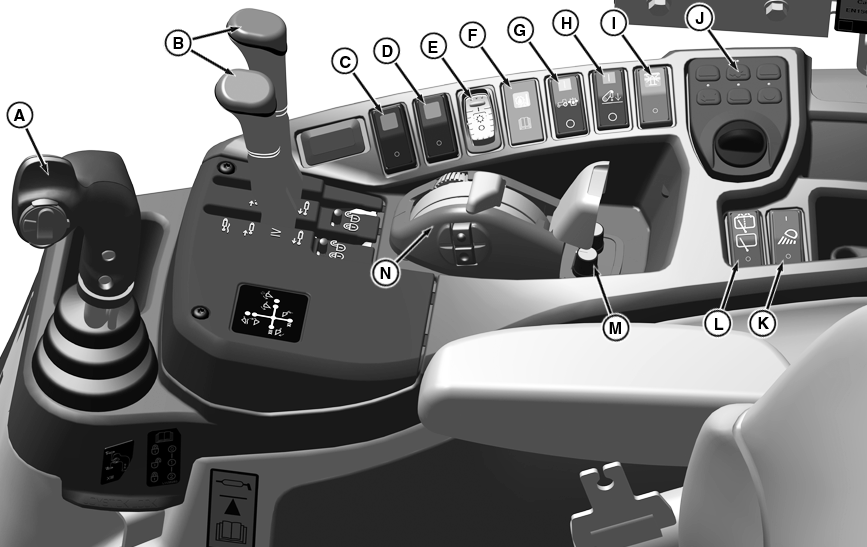

Cab—Mechanical Mid SCV

A - Mid SCV Controls

B - Rear SCV Controls

C - Third Continuous Flow Switch

D - Fifth Continuous Flow Switch

E - Rear PTO Engagement Switch

F - Hydraulic Oil Temperature Indicator

G - Diverter Switch

H - Hitch Down Force Switch

I - Beacon Light Switch

J - eThrottle Controls

K - Rear Work Lights Switch

L - Rear Wiper Switch

M - Rear Hitch Rate-of-Drop Control and Rear Hitch Height Limit

N - Rear Hitch Control

LVP10031-UN-26SEP19

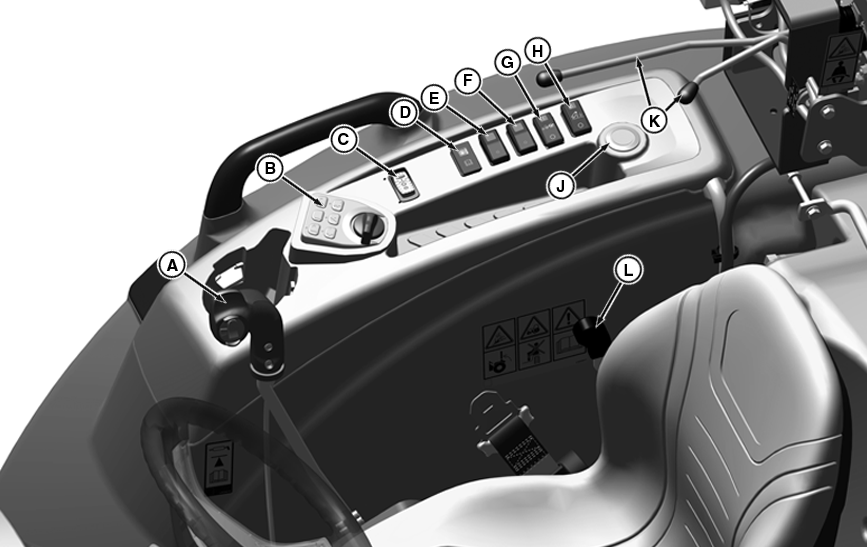

OOS—4R Hydrostatic

A - Mid SCV Controls

B - eThrottle Controls

C - Rear PTO Engagement Switch

D - Hydraulic Oil Temperature Indicator

E - Dual Rear Continuous Switch

F - Third Function Control Switch

G - Diverter Switch

H - Hitch Down Force Switch

J - Power Port

K - Rear SCV Controls

L - Rockshaft Control Lever

LVP10049-UN-23SEP19

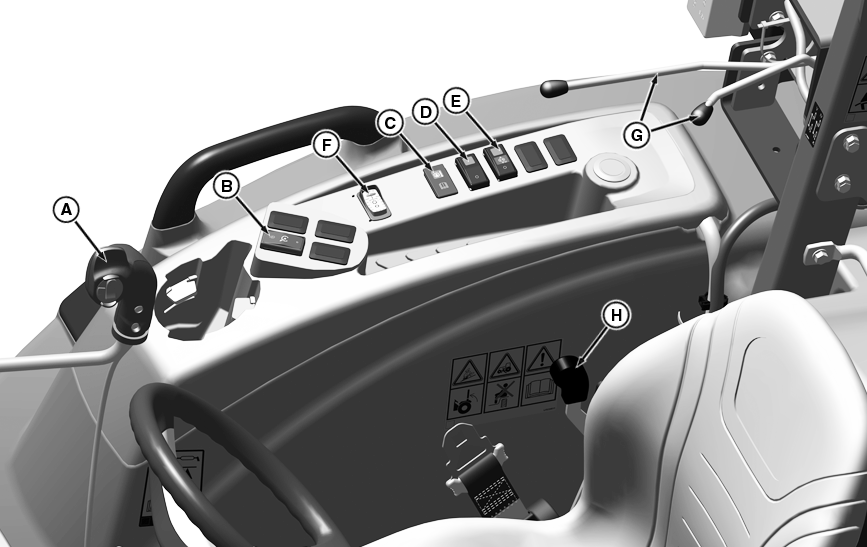

OOS—4M Hydrostatic

A - Mid SCV Controls

B - Cruise Control Switch

C - Hydraulic Oil Temperature Indicator

D - Dual Rear Continuous Switch

E - Third Function Control Switch

F - Rear PTO Engagement Switch

G - Rear SCV Controls

H - Rockshaft Control Lever

LVP10050-UN-23SEP19

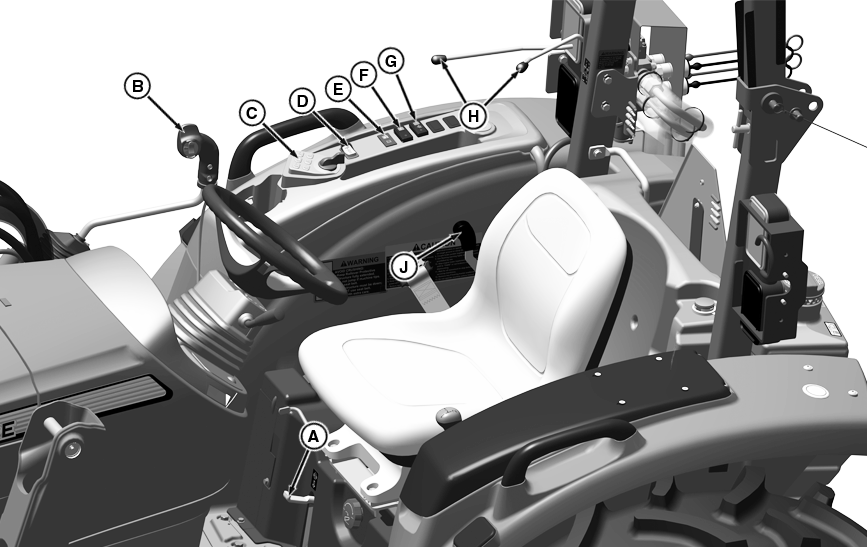

OOS—4M PowrReverser

A - Differential Lock Pedal

B - Mid SCV Controls

C - Light Controls

D - Rear PTO Engagement Switch

E - Hydraulic Oil Temperature Indicator

F - Dual Rear Continuous Switch

G - Third Function Control Switch

H - Rear SCV Controls

J - Rockshaft Control Lever
