Operate Rear EH Hitch Controls—Cab Tractors

CAUTION: To prevent possible injury, use only position control lever (B) when attaching or detaching implements. Do not use quick raise/lower buttons (C and D).

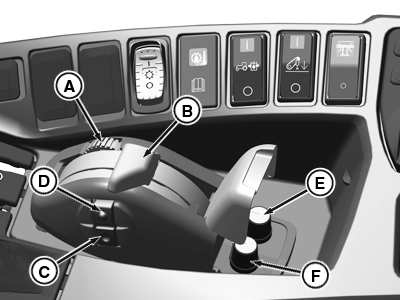

APY20339-UN-08AUG19

A - Position Control Lever Stop

B - Position Control Lever

C - Quick Lower Button

D - Quick Raise Button

E - Upper Limit Adjustment Control Knob

F - Rate of Drop Adjustment Control Knob

• Position Control Lever (B): Position control lever (B) controls raise or lower movement of rear hitch-mounted implement and ground depth penetration. Pull lever rearward to raise and push lever forward to lower.
  • Transport: Pull lever full rearward past “0” to transport implement. Ensure that lever is in transport lock position (lever flipped over latch at the padlock symbol). NOTE: Quick raise/lower buttons (C and D) are disabled when position control lever is in transport lock position. Hitch rises to transport lock position when engine is running.

  • Float: Push lever full forward to float implement, allowing it to follow the ground contour. NOTE: Ensure that implement skids or height gauge wheels are set correctly to carry full implement weight. Ensure that draft link arms are adjusted for any required lateral float.

• Position Control Lever Stop (A): Push down and rotate wheel (A) until stop sets to desired working depth. Implement returns to set depth when position control lever is pushed forward to contact stop. A few minutes of implement operation helps determine the best depth. To lower hitch below the preset depth stop, lift position control lever (B) and push forward past stop.
• QRL (Quick Raise and Lower) Buttons (C and D): Depress quick raise button (D) to raise the hitch to the upper limit setting. Depress the quick lower button (C) to return the hitch to the set working depth. Hold down quick lower button (C) while machine is moving for 1 second to activate QRL fast lower feature.
• Upper Limit Adjustment Control Knob (E): Turn knob to set the maximum raised position of the hitch. This allows the operator a means to adjust the maximum height to which the hitch moves when a raise command is executed.
• Rate of Drop Adjustment Control Knob (F): Turn knob to set the rate at which the hitch lowers. This allows the operator a means to adjust the rate at which the hitch moves when a lower command is executed.
