EH Selective Control Valve (SCV) Coupling Mode

Coupling mode is used to relieve pressure for attaching or detaching an implement to the EH SCV couplers.

1.
   APY20343-UN-19AUG19

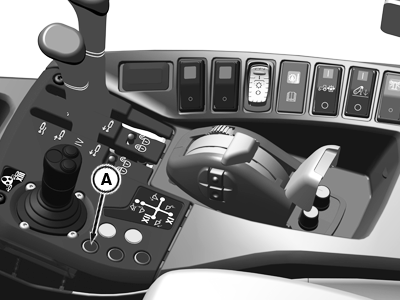

   A - Joystick Lock and Unlock Button

   With the tractor running, press the unlock button (A) to unlock joystick.

---




2. Raise the bucket 1-2 feet off the ground.

3.
   APY20344-UN-19AUG19

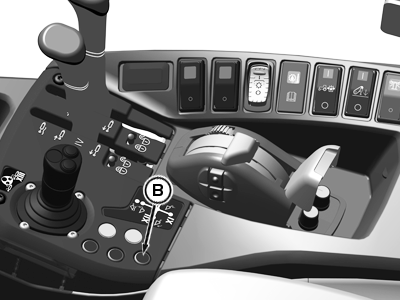

   B - Coupling Mode Button

   Press the coupling mode button (B). The coupling mode button (B) is backlit green when it is enabled.

---




4.
   LV29986-UN-08MAR18

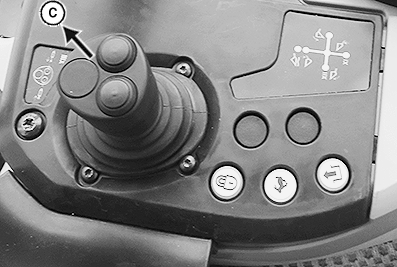

   Boom/Bucket Float Position


   LV29985-UN-08MAR18

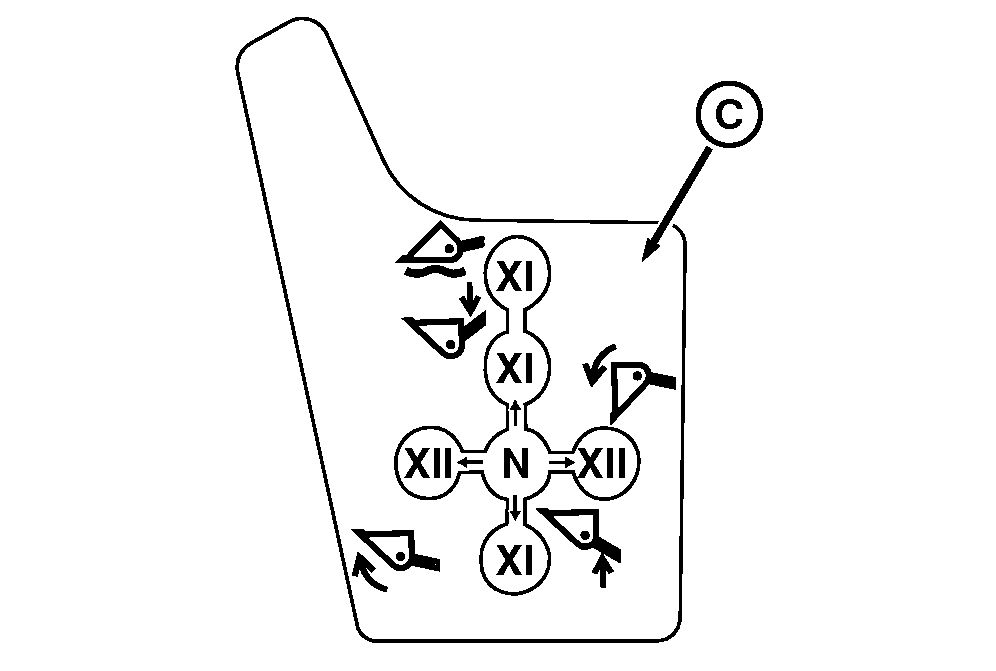

   EH SCV Joystick Label

   B - Boom/Bucket Float Position

   With the couple mode enabled, move the joystick to the boom/bucket float position (C) and hold.

---




5. Wait for the bucket to settle to the ground.

6. Turn off tractor while holding the joystick in the boom/bucket float position.

7. When the tractor is OFF release the joystick.

8. The tractor is ready to couple or decouple the implement.
