Use EH Selective Control Valve (SCV) Joystick


EH Selective Control Valve (SCV) Joystick Operation

APY20345
APY20345-UN-19AUG19

LV29804
LV29804-UN-18JAN18

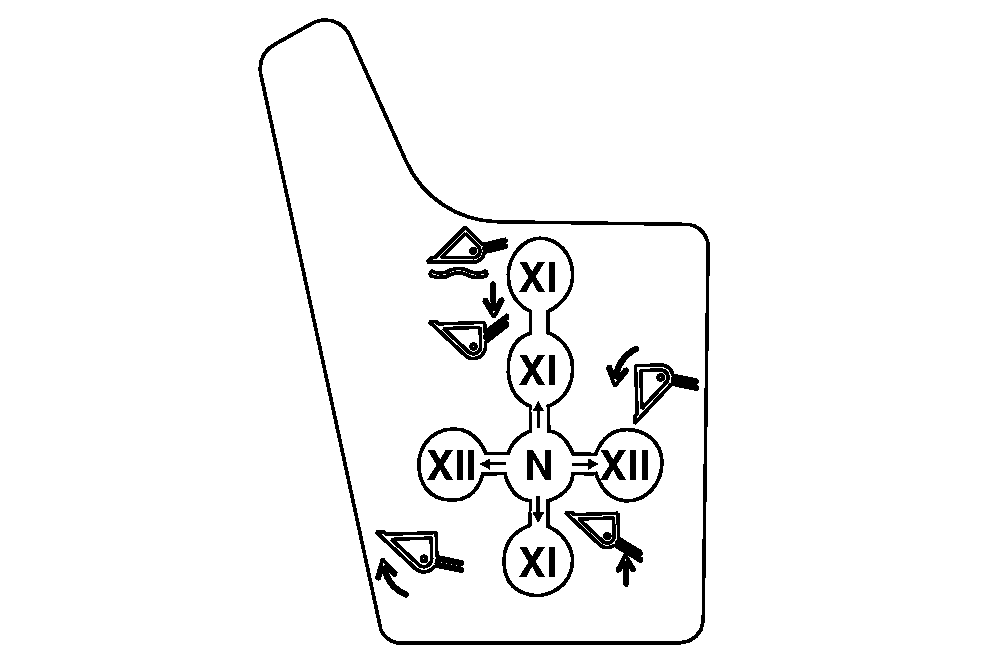

EH SCV Joystick Label

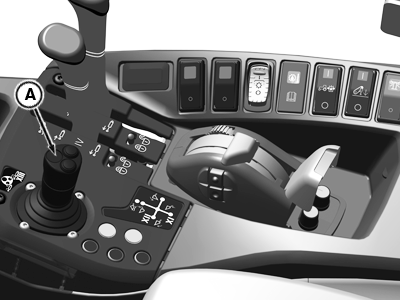

A - Selective Control Valve (SCV) Joystick

The selective control valve (SCV) joystick (A) controls the loader and bucket hydraulic functions. The label beside the SCV joystick shows the available positions.

Joystick Position

Function

Forward

Boom Lower

Forward (detent position)

Boom Lower Float

Back

Boom Raise

Left

Bucket Roll (Curl)

Right

Bucket Tilt (Dump)

Float allows the loader to float and follow the ground contour.


EH SCV Joystick Lock

APY20343
APY20343-UN-19AUG19

A - Lock Button

The lock button (A) allows the operator to lock the joystick when not in use. Lock button (A) lights up when active.


EH SCV Fast (Rabbit) Mode

Fast (rabbit) mode is used when the operator wants the implement to move at a faster speed.

APY20346
APY20346-UN-19AUG19

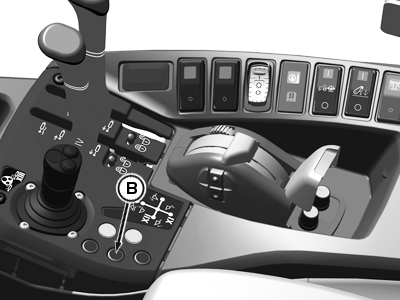

B - Fast (Rabbit) Button

To activate and deactivate fast mode, press fast (rabbit) button (B). Fast (rabbit) button (B) lights up when active.
