Use Third EH SCV Outlet

CAUTION:

X9811
X9811-UN-23AUG88

Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high pressure fluids.

If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

IMPORTANT: Avoid damage! To prevent contamination of female quick couplers, color-coded hose ends should be installed in the couplers when not being used.

There is an optional third selective control valve (SCV) kit available for this tractor. It allows hydraulically driven implements to be operated from one set of outlets at the mid-mount position.

The machine-mounted hydraulic outlets are female quick couplers.

The mid outlet SCV operates in a momentary condition to operate attachments such as extending or retracting a hydraulic cylinder. The attachment receives full hydraulic flow in direct response to the use of the button.


Use Third EH SCV Buttons

LV29935
LV29935-UN-25JAN18

Third Function Button Label

A - Extend

B - Retract

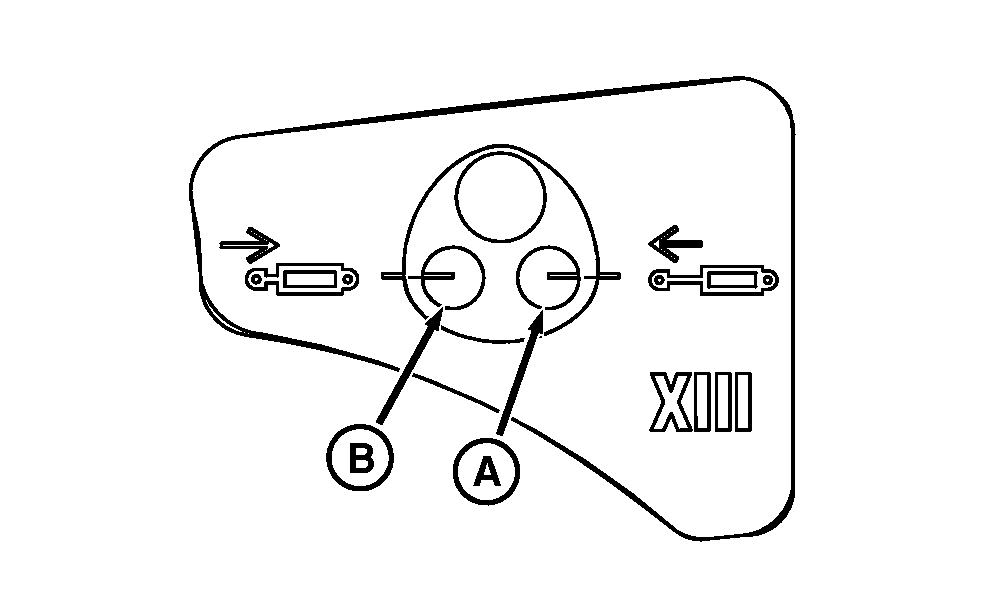

The third function label is installed in the front of the joystick and shows button functions.

APY20347
APY20347-UN-19AUG19

A - Extend

B - Retract

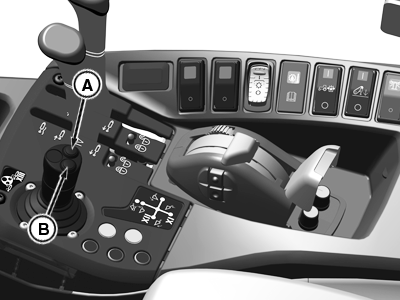

Press button (A) for cylinder extend and (B) for cylinder retract.

LV29928
LV29928-UN-22JAN18

C - Cylinder Retract

D - Cylinder Extend

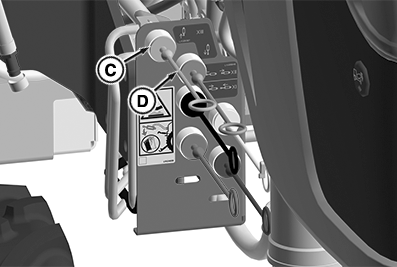

Outlet (C) is the cylinder retract and (D) is the cylinder extend.
