Using Torsion Tube—Category 1 and 1N—If Equipped

LV23650
LV23650-UN-07JAN15

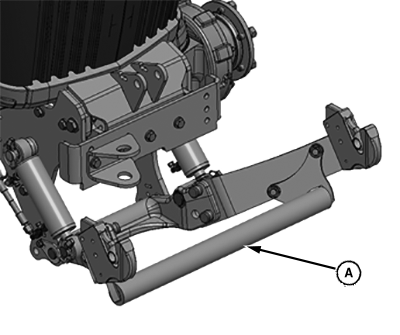

A - Torsion Tube

For heavy push applications, use of torsion tube (A) is recommended. If torsion tube is installed, lift arms must be in fixed position. To use lift arms in float position, torsion tube must be removed.

Implements that require use of the front PTO may be used while torsion tube is installed. Clearance to torsion tube and implement drive line through complete lift range must be checked prior to operation.
