Installing A-Frame—If Equipped

Install A-Frame (Category 1)

1.
   LV19394-UN-18OCT13

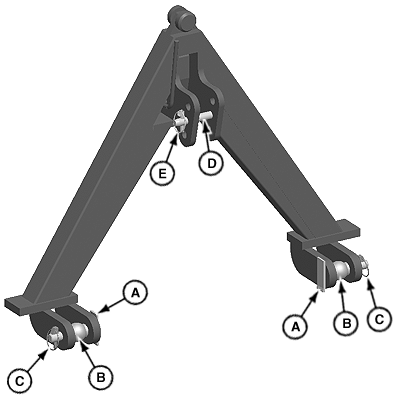

   A - Lift Pins

   B - Ball

   C - Lynch Pin

   D - Hinge Pin

   E - Lynch Pin

   Install lift pins (A) in frame with ball (B), secure with lynch pins (C).

---




2. Install hinge pin (D) in middle hole in frame, secure with lynch pin (E).

3.
   LV19395-UN-18OCT13

   Category 1 A-Frame

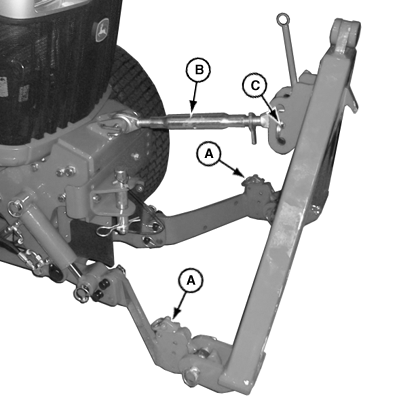

   A - Lift Arm Locks

   B - Center Link

   C - Hinge Pin

   Install A-Frame onto lift arm claws as shown. Ensure that the lift arm locks (A) are fully engaged.

---




4. Install front hitch center link (B) on A-frame with hinge pin (C) and lynch pin.

Install A-Frame (Category 1N)

1. Install A-Frame onto lift arms by inserting hinge pin through lift arm ball and A-frame coupler. Secure with lynch pin.

2. NOTE:


   LV23643-UN-07JAN15

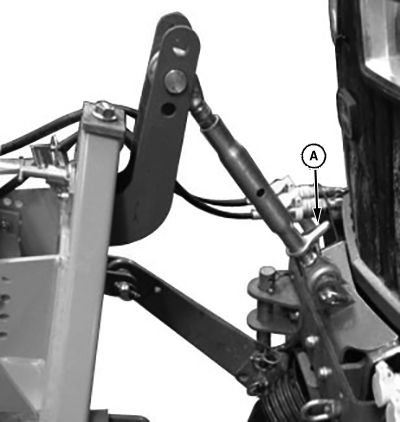

   A - Locking Tab

   Verify that locking tab (A) on center link is toward tractor.

   Install front center link on A-frame with hinge pin and secure with lynch pin.

---
