Using Loader with Front Hitch—If Equipped

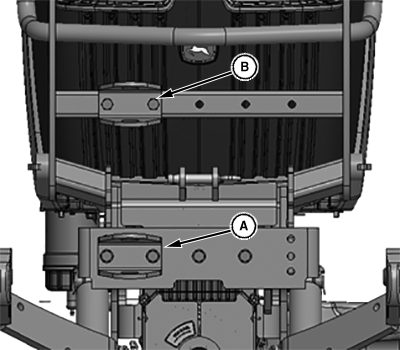

  1. LV23632
    LV23632-UN-06JAN15

    A - Tractor Frame

    B - Hood Guard

    Place hitch in storage position. See Storing section.


  2. Relocate tow hook from the tractor frame (A) to hood guard (B).

  3. Attach loader per loader operation instruction.

UP00731,00002C5-19-20180827
