Entering and Exiting Machine

LV29131-UN-09AUG17

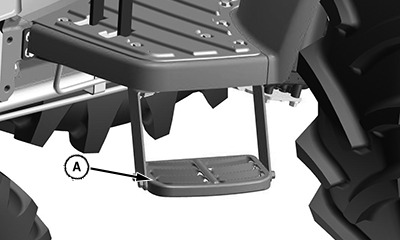

Open Operator Station Tractor

LV29109-UN-08AUG17

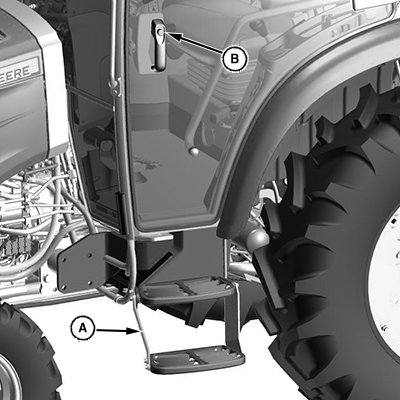

Cab Tractor

A - Step

B - Handle

Using Step

Step (A) is located on the left side of machine. Use step for entering and exiting the operator station.

Using Left Side Door (Tractor with Cab)

To enter cab, press button on handle (B) and open door. Close door until door locks in closed position.

To exit cab, push lever on inside of door handle and open door.

Emergency Exit

In an emergency situation, open glass panel on right side of cab to exit.
